Brand Name : | Baodi |
Model Number : | BD-BWMF |
Payment Terms : | T/T, Western Union, L/C |
Supply Ability : | 2300 rolls per month |
Delivery Time : | 10-30 days |
Price : | negotiated |

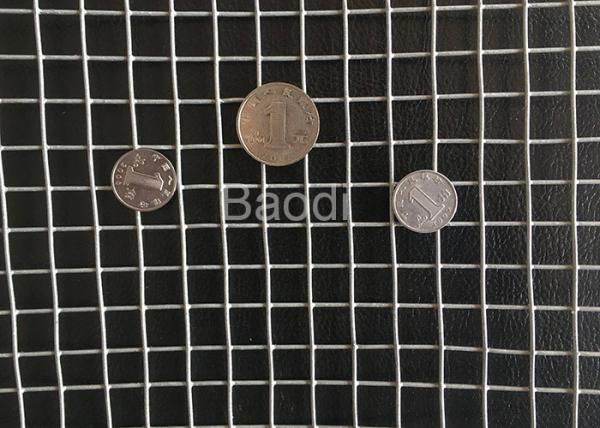

Galvanized Hardware Cloth Firm Structure For Construction Use
Hardware cloth is also known as Wire Fabric or Wire Mesh, is easily adapted to almost any application.
With the wire strands welded at each intersection, hardware cloth is available in various sizes and shapes.
The surface treatment is galvanized after welding, it's a process in which a protective zinc coating is applied to steel to prevent rusting.
Feature
Specification list of hardware cloth | |||
Mesh Opening | Wire Diameter | ||
In inch | In metric unit(mm) | <BWG> | In metric unit(mm) |
1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 | 0.7mm,0.6mm,0.55mm |
3/8" x 3/8" | 9.5mm x 9.5mm | 19,20,21,22 | 1.0mm,0.9mm,0.8mm,0.7mm |
1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 | 1.6mm,1.4mm,1.2mm,1.0mm,0.9mm,0.8mm,0.7mm,0.6mm |
5/8" x 5/8" | 16mm x 16mm | 18,19,20,21 | 1.2mm,1.0mm,0.9mm,0.8mm |
3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 | 1.6mm,1.4mm,1.2mm,1.0mm,0.9mm,0.8mm |
1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 | 1.6mm,1.4mm,1.2mm,1.0mm,0.9mm,0.8mm |
1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 | 2.0mm,1.8mm,1.6mm,1.4mm,1.2mm,1.0mm |
1" x 2" | 25.4mm x 50.8mm | 14,15,16 | 2.0mm,1.8mm,1.6mm |
2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 | 2.6mm,2.3mm,2.0mm,1.8mm,1.6mm |
![]() |
