Round Pattern Steel Aluminum Stainless Steel Perforated Metal Mesh
Description
The perforated metal mesh is stamped from the original steel plate.
Beautiful appearance, widely used in the protection of speakers,
bridges, pedals and various mechanical equipment.
Steel plate materials mainly include steel plate, cold rolled
plate, hot rolled plate, galvanized steel plate, alloy steel plate,
etc.
Classification of Perforated Mesh:
Classification by thickness: (1) thin plate (2) medium plate (3)
thick plate (4) extra thick plate
Classification by material: (1) hot rolled steel plate (2) cold
rolled steel plate material (3) stainless steel plate 2 nickel, 4
nickel, 302, 304, 316, 304L and 316L
Classification by hole: diamond, square, round, triangle, fish
phosphorus hole, irregular hole, etc.
Features: the mesh surface is flat, smooth, beautiful, firm and
durable, and has a wide range of applications.
| Material | Stainless Steel plate, High or Low carbon Steel Plate |
| Type | Perforated Mesh, raised, flattened |
| Application | Decorate and filter,Screen |
| Hole shape | Round,Customized Special-shaped,Square, Round, Hexagonal etc |
| Feature | beautiful,Anti-corrosion |
Specifications| Plate material | Thickness (mm ) | Hole (mm) | Pitch (mm) | Sheet Width(m) | Sheet Length(m) | Porosity (%) | Plate Weight (kg/m2) |
| Steel sheet | 0.5mm | 1mm | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.55mm | 1.1mm | 2.2 | 1 | 2 | 22.67 | 3.411 |
| 0.55mm | 1.5mm | 2.8 | 1 | 2 | 26.03 | 3.268 |
| 0.8mm | 1.5mm | 1.5 | 1 | 2 | 19.6 | 5 |
| 0.8mm | 2mm | 3.4 | 1 | 2 | 30.78 | 4.465 |
| 1.5mm | 2mm | 2 | 1 | 2 | 19.6 | 9.4 |
| 1.5mm | 5mm | 8.0 | 1 | 2 | 35.39 | 7.843 |
| 3mm | 5mm | 16 | 1 | 2 | 19.6 | 18.8 |
| Stainless steel | 0.5mm | 1mm | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.8mm | 1.5mm | 1.5 | 1 | 2 | 19.6 | 5 |
| 1mm | 2mm | 2 | 1 | 2 | 19.6 | 6.28 |
| 2mm | 5mm | 16 | 1 | 2 | 19.6 | 6.28 |
| Aluminum sheet | 0.5mm | 1mm | 1 | 1 | 2 | 19.6 | 1.08 |
| 0.8mm | 3mm | 3 | 1 | 2 | 19.6 | 1.72 |
| 1.6mm | 2mm | 2 | 1 | 2 | 19.6 | 3.24 |
| 3mm | 4mm | 16 | 1 | 2 | 19.6 | 4.23
|

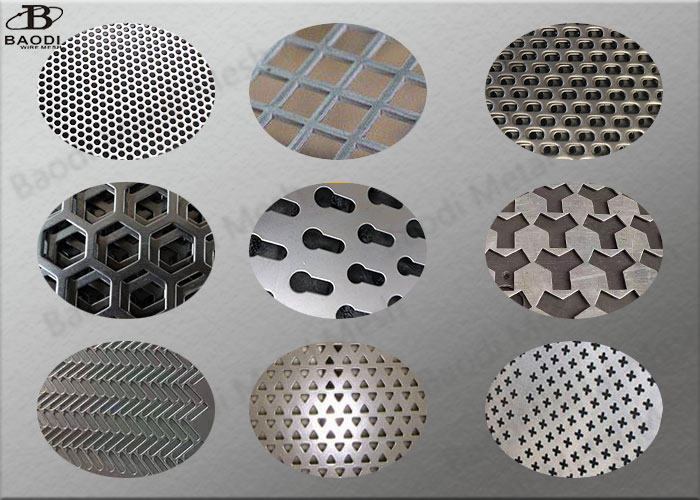

Product Show
Variety Patterns can be customized
Factors for quotation
1. plate raw material
2. plate thickness
3. hole shape & dimension
4. round hole arrangement
5. open area
6. margin
7. plate dimension(width x length x thickness)
