6X6 Wire Mesh Concrete Reinforcement , Steel Reinforcing Mesh 4 - 12 Inch

6X6 Concrete Reinforcing Wire Mesh Welded Reinforcing Steel Bar

► Product Introduction of Reinforcing Wire Mesh

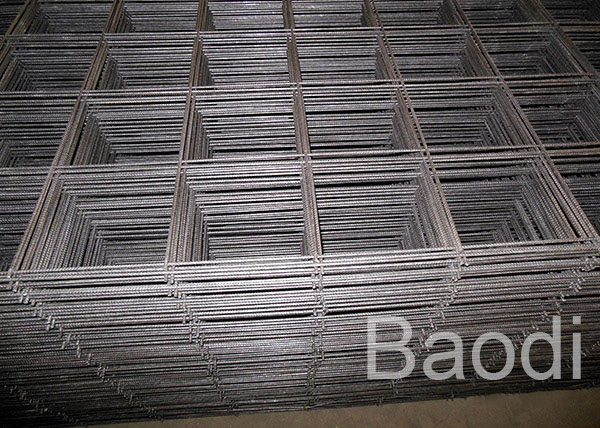

1> 6X6 Reinforcing Wire Mesh is an electric fusion welded prefabricated joined grid consisting of a series of parallel longitudinal wires with accurate spacing welded to cross wires at the required spacing.

2> It's often patterned to form a better bond with the concrete.

3> Reinforcing wire mesh comes in rectangular or square steel reinforcement grids.

4> It consists of a series of parallel, longitudinal and transverse cold-worked and high-yield wires welded at regular intervals.

5> The reinforcing mesh can design by the project requirement, improve the efficiency and bond to the concrete can meet the special construct needs.

6> Reinforcing Wire Mesh is custom made by our factory, it is available in various sizes and shapes, the edge could be smooth or rough, the panel could be cutted to the size as your request.

► Feature Of Reinforcing Wire Mesh

Firm Structure

Wires resist movement

Easy handling

Extensive use

High strength

Square or rectangular grids

Uniform mesh

Savings in time, labour and money

► Application Of Reinforcing Wire Mesh

It is widely use in:

♦ wall

♦ roof

♦ balcony

♦ airport

♦ tunnel

♦ bridge

♦ highway

♦ wharf

♦ construction of building floor

► Specification Detail

Reference No.	Main Wire		Cross Wire		Steel Area		Mass per Unit Area kg/m²
Reference No.	Diameter mm	Pitch mm	Diameter mm	Pitch mm	Main mm²	Cross mm²	Mass per Unit Area kg/m²
A63	4	200	4	200	63	63	0.99
A98	5	200	5	200	98	98	1.54
A142	6	200	6	200	142	142	2.22
A193	7	200	7	200	193	193	3.02
A252	8	200	8	200	252	252	3.95
A318	9	200	9	200	318	318	4.99
A393	10	200	10	200	393	393	6.16
A475	11	200	11	200	475	475	7.46
A565	12	200	12	200	565	565	8.88
A664	13	200	13	200	664	664	10.42
B196	5	100	7	200	196	193	3.05
B283	6	100	7	200	283	193	3.73
B385	7	100	7	200	385	193	4.53
B503	8	100	8	200	503	252	5.93
B636	9	100	8	200	636	252	6.97
B785	10	100	8	200	785	252	8.14
B950	11	100	8	200	950	252	9.44
B1131	12	100	8	200	1131	252	10.86
B1328	13	100	8	200	1328	252	12.40
DA126	4	100	4	100	126	126	1.97
DA196	5	100	5	100	196	196	3.08
DA283	6	100	6	100	283	283	4.44
DA385	7	100	7	100	385	385	6.04
DA503	8	100	8	100	503	503	7.90
DA636	9	100	9	100	636	636	9.98
DA785	10	100	10	100	785	785	12.32
DA950	11	100	11	100	950	950	14.92
DA1131	12	100	12	100	1131	1131	17.76
DA1328	13	100	13	100	1328	1328	20.85

Packing: on pallet or null packing

Production Process

Wire Drawing → Wire Straightening & Wire Cutting → Welding→ Packing → Loading

Welding

Welded wire steel fabric is manufactured with automatic welding machines, where wires are welded together in square or rectangular grids.
