Stainless Steel Perforated Steel Mesh With Round Holes For
Construction

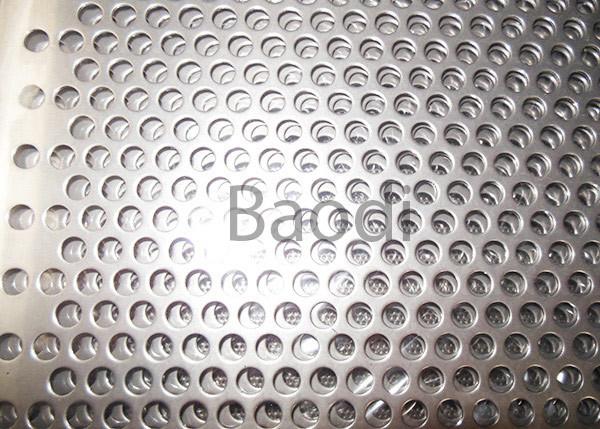

Perforated Steel Mesh is a metal sheet product that has been
punched with a wide variety of hole sizes and patterns, such as
round hole, square hole or slotted hole, etc.
It's widely used in interior and exterior design.
| Perforated Steel Mesh |
| Material | Low carbon steel,stainless steel,aluminum |
| Hole Pattern | Round hole,square hole, slotted hole | Hole size | 0.8-25mm |
| Sheet Width | Maximum width 1.5m | Sheet Length | Maximum length 3m |
| Sheet Thickness | 0.5mm-3.5mm | Packing | Plastic film inside,pallet outside |
Application Of Perforated Steel Mesh
1. Chemical — Filters, centrifuges, drying machine baskets, battery separator
plates, water screens, gas purifiers, liquid gas burning tubes,
mine cages, coal washing, etc.
2. Food and beverage — Beehive construction, grain dryers, wine vats, fish farming,
silo ventilation, sorting machines, fruit and vegetable juice
presses, cheese molds, baking trays, coffee screens, etc.
3. Architectural — Infill panels, sunshade, cladding, column covers, metal signage,
site amenities, fencing screens, etc.
4. Automotive — Air filters, oil filters, silencer tubes, radiator grilles,
running boards, flooring, motorcycle silencers, ventilation grids,
tractor engine ventilation, etc.
5. Construction — Ceiling noise protection, acoustic panels, stair treads, pipe
guards, ventilation grilles, sun protection slats, facades, sign
boards, etc.
Specification List Of Perforated Steel Mesh
| Plate material | Thickness of metal(mm ) | Hole Dia.(mm) | Pitch (mm) | Sheet Width(m) | Sheet Length(m) | Porosity (%) | Weight (kg/m2) |
| Flat plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.55 | 1.1 | 2.2 | 1 | 2 | 22.67 | 3.411 |
| 0.55 | 1.5 | 2.8 | 1 | 2 | 26.03 | 3.268 |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 |
| 0.8 | 2 | 3.4 | 1 | 2 | 30.78 | 4.465 |
| 1.5 | 2 | 2 | 1 | 2 | 19.6 | 9.4 |
| 1.5 | 5 | 8.0 | 1 | 2 | 35.39 | 7.843 |
| 3 | 5 | 16 | 1 | 2 | 19.6 | 18.8 |
| Stainless steel plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 |
| 1 | 2 | 2 | 1 | 2 | 19.6 | 6.28 |
| 2 | 5 | 16 | 1 | 2 | 19.6 | 6.28 |
| Aluminum plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 1.08 |
| 0.8 | 3 | 3 | 1 | 2 | 19.6 | 1.72 |
| 1.6 | 2 | 2 | 1 | 2 | 19.6 | 3.24 |
| 3 | 4 | 16 | 1 | 2 | 19.6 | 4.23 |
Factors for quotation
| Material | Sheet Thickness |
| Hole Shape | Hole Arrangement |
| Open Area / Hole Pitch | Margin Leaving |
| Sheet Length | Sheet Width |
Why Choose Us?
1. Quality is our culture, always supply high qulity products with
reasonable price.
2. Customer's request is our objective.
3. We're professional in producing wire mesh for many years, and
have many experiences to do it.
4. You could visit our factory if convenient.
