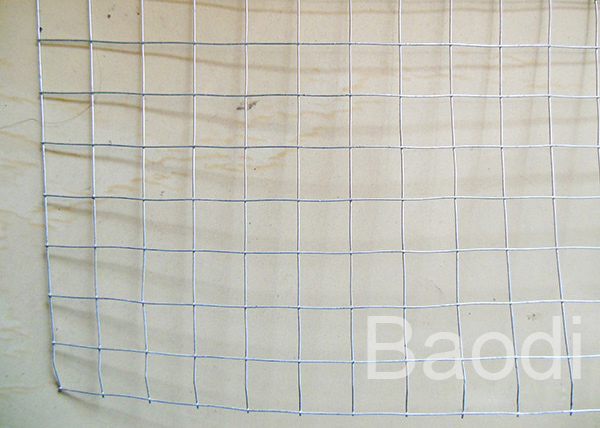

Construction Square Grid Welded Wire Mesh Electric Galvanized
Construction Square Grid Welded Wire Mesh Introduction
The Welded Wire Mesh is a metal wire screen, which is made up of
low carbon iron wire or stainless steel wire. It is available in
various sizes and shapes.
♦ Welded wire mesh typically has larger openings than woven wire
mesh.With the wire strands welded at each intersection, welded mesh
is more capable of maintaining its shape when stressed. |
♦ It's available in various roll height: 2' / 3' / 3.28' / 4' / 5'
/ 6' |
♦ It could be packed in plastic film or waterproof paper. |
♦ The welded wire mesh could be custom made by our factory.
| Item Number | BD-WWM | Trade Name | Baodi |
| Product Type | Welded mesh, construction wire mesh |
| Material | Low carbon steel wire, stainless steel wire |
| Surface Treatment | Galvanized or PVC coated |
| Wire Gauge | #14 - #29 | Mesh Opening | 1/4” – 4” |
| Roll Height | 2' / 3' / 3.28' / 4' / 5' / 6' | Roll Length | Maximum 100' |
| Packing | Plastic film or water-proof paper |
Characteristic of Construction Welded Wire Mesh
♦ Solid structure |
♦ Wires resist movement |
♦ Easy handling |
♦ Extensive use |
♦ High strength |
♦ Square pattern |
♦ Uniform mesh and smooth surface |
♦ Savings in time, labour and money |
Types of Square Grid Welded Wire Mesh
- Electro galvanized welded wire mesh
- Hot dipped galvanized welded wire mesh
- PVC coated welded wire mesh
- Stainless steel welded wire mesh
Usage
♦ Welded wire mesh is widely used in agricultural, industrial,
transportation, horticultural and food procuring sectors.
♦ It is also used in mines, gardening, machine protection and other
decorations.
Quick Detail
Welded Wire Mesh |
Mesh Opening | Wire Diameter<BWG> |
In inch | In metric unit(mm) |
1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
Galvanized Fencing Mesh |
Mesh Opening | Wire Diameter<BWG> |
In inch | In metric unit(mm) |
2" x 3" | 50mm x 75mm | 2.0mm,2.5mm,1.65mm |
3" x 3" | 75mm x 756mm | 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
2" x 4" | 50mm x 100mm | 2.11mm,2.5mm |
4" x 4" | 100mm x 100mm | 2.0mm,2.5mm |
| PVC Coated Welded Mesh |
| Opening | Wire Diameter<BWG> |
| In inch | In metric unit(mm) |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21 |
| 3/4" x 3/4" | 19mm x 19mm | 16,17,18,19,20,21 |
| 1" x 1" | 25.4mm x 25.4mm | 15,16,17,18,19,20 |
Technical Note:
♦ Standard roll length: 30m;width: 0.5m to 1.8m
♦ Special sizes available at request
♦ Packing: in waterproof paper in rolls. Custom packing available
at request.
