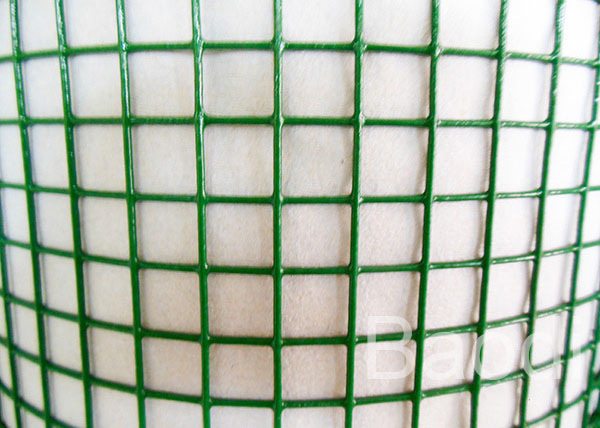

Green Plastic Welded Wire Mesh In Roll With Uniform Square Grid
Different Types of welded wire mesh
| 1. Electro galvanized welded wire mesh |
| 2. Hot dipped galvanized welded wire mesh |
| 3. PVC coated welded wire mesh |
| 4. Stainless steel welded wire mesh |
Green Plastic Welded Wire Mesh Product Description
1. The Welded Wire Mesh is a metal wire screen, which is made up of
low carbon iron wire or stainless steel wire. It is available in
various sizes and shapes. |
2. Welded wire mesh typically has larger openings than woven wire
mesh.With the wire strands welded at each intersection, welded mesh
is more capable of maintaining its shape when stressed. |
3. It's available in various roll height: 2' / 3' / 3.28' / 4' / 5'
/ 6'
4. It could be packed in plastic film or waterproof paper.
NOTE: The welded wire mesh could be custom made by our factory.
Characteristic of Welded Wire Mesh
♦ Solid structure
♦ Wires resist movement
♦ Easy handling
♦ Extensive use
♦ High strength
♦ Square pattern
♦ Uniform mesh and smooth surface
♦ Savings in time, labour and money
Application
Welded wire mesh is widely used for:
- pet cages
- puppy runs
- rabbit runs
- aviaries
- making trays baskets
- seeding guards
- squirrel protection
Specification
Welded Wire Mesh |
Mesh Opening | Wire Diameter<BWG> |
In inch | In metric unit(mm) |
1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
Technical Note:
♦ Standard roll length: 30m;width: 0.5m to 1.8m
♦ Special sizes available at request
♦ Packing: in waterproof paper in rolls. Custom packing available
at request.
Galvanized Fencing Mesh |
Mesh Opening | Wire Diameter<BWG> |
In inch | In metric unit(mm) |
2" x 3" | 50mm x 75mm | 2.0mm,2.5mm,1.65mm |
3" x 3" | 75mm x 756mm | 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
2" x 4" | 50mm x 100mm | 2.11mm,2.5mm |
4" x 4" | 100mm x 100mm | 2.0mm,2.5mm |
| PVC Coated Welded Mesh |
| Opening | Wire Diameter<BWG> |
| In inch | In metric unit(mm) |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21 |
| 3/4" x 3/4" | 19mm x 19mm | 16,17,18,19,20,21 |
| 1" x 1" | 25.4mm x 25.4mm | 15,16,17,18,19,20 |
