Rolled Mild Steel Galvanized Welded Hardware Cloth For Construction
Description of welded hardware cloth

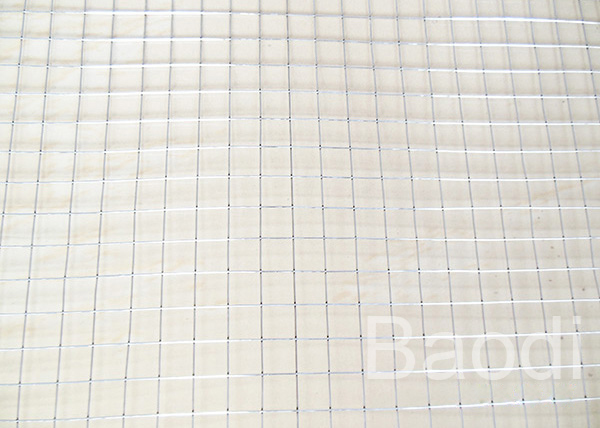

The Welded Hardware Clothis a metal wire screen, which is made up
of low carbon iron wire or stainless steel wire. It is available in
various sizes and shapes.
The surface treatment could be electro galvanized, hot dipped
galvanized or PVC coated.
It could be packed in plastic film or waterproof paper.
The Welded Hardware Clothcould be custom made by our factory.
| Material: | Low Carbon Iron Wire,stainless Steel Wire | Wire Diameter: | 14 Gauge To 29 Gauge |
|---|
| Aperture: | 1/4" To 4" | Maximum Roll Height: | 2' / 3' / 3.28' / 4' / 5' / 6' |
|---|
| Maximum Roll Length: | 100' | Surface Treatment: | Galvanized |
|---|
Welded Hardware Cloth Feature
- Solid structure
- Wires resist movement
- Easy handling
- Extensive use
- High strength
- Square pattern
- Uniform mesh and smooth surface
- Savings in time, labour and money
Application of Welded Hardware Cloth
| ♦ Mines | ♦ Agricultural | ♦ Industrial |
| ♦ Transportation | ♦ Gardening | ♦ Machine protection |
| ♦ Food procuring sectors | ♦ Horticultural sectors | ♦ Other decorations |
Types of Welded Hardware Cloth
- Electro galvanized Welded Hardware Cloth
- Hot dipped galvanized Welded Hardware Cloth
- PVC coated Welded Hardware Cloth
- Stainless steel Welded Hardware Cloth
Specification List
Mesh Opening ( In inch ):
2" x 3"
3" x 3"
2" x 4"
4" x 4"
Mesh Opening In metric unit (mm):
50mm x 75mm
75mm x 756mm
50mm x 100mm
100mm x 100mm
Wire Diameter<BWG>:
2.67mm, 2.5mm, 2.41mm, 2.11mm, 2.0mm, 1.83mm, 1.65mm
Welded Hardware Cloth |
Mesh Opening | Wire Diameter<BWG> |
In inch | In metric unit (mm) |
1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
Technical Note:
♦ Standard roll length: 30m;width: 0.5m to 1.8m
♦ Special sizes available at request
♦ Packing: in waterproof paper in rolls. Custom packing available
at request.
