Roll Electric Galvanised Welded Wire Fabric Packed In Plastic Film
The electric galvanised welded wire fabric is a kind of welded mesh
in roll.
It’s made of high quality iron wire by welding to form mesh
structure and square pattern.
It is available in various sizes and shapes.
It's available in various roll height: 2' / 3' / 3.28' / 4' / 5' /
6'
The welded wire fabric could be custom made by our factory. It could be packed in plastic film or waterproof paper.
The welded wire fabric cuold be four types below:
Type 1: Electro galvanized welded wire fabric
Type 2: Hot dipped galvanized welded wire fabric
Type 3: PVC coated welded wire fabric
Type 4: Stainless steel welded wire fabric
Application
welded wire fabric is widely used in:
1. Agricultural
2. Industrial
3. Transportation
4. Horticultural and food procuring sectors
5. Mines
6. Gardening
7. Machine protection
8. Other decorations
Feature Of Welded Wire Fabric
| Firm Structure | Wires resist movement |
| Easy handling | Extensive use |
| Uniform mesh and smooth surface | High strength |
| Square grids | Savings in time, labour and money |
Specification List
welded wire fabric |
Mesh Opening | Wire Diameter<BWG> |
In inch | In metric unit(mm) |
1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m
2.Special sizes available at request 3.Packing: in waterproof paper
in rolls. Custom packing available at request. |
Galvanized Fencing Mesh |
Mesh Opening | Wire Diameter<BWG> |
In inch | In metric unit(mm) |
2" x 3" | 50mm x 75mm | 2.0mm,2.5mm,1.65mm |
3" x 3" | 75mm x 756mm | 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
2" x 4" | 50mm x 100mm | 2.11mm,2.5mm |
4" x 4" | 100mm x 100mm | 2.0mm,2.5mm |
Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m
2.Special sizes available at request 3.Packing: in waterproof paper
in rolls. Custom packing available at request. |

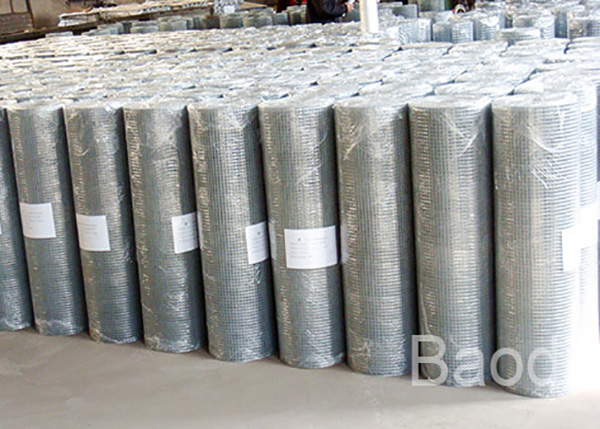

Packing Detail: Roll Welded Wire Fabric is packed in plastic film.
