Crimped Aluminum Woven Wire Cloth In Roll As Screen In Mine &
Architecture

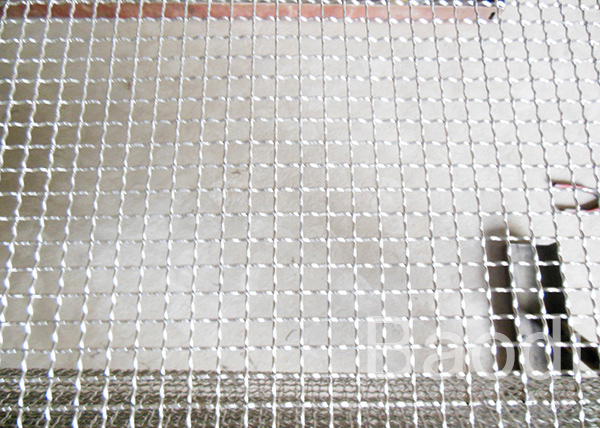

Aluminum Woven Wire Cloth Description
Woven wire cloth, typically produced from carbon steel, stainless
steel or aluminum, is commonly employed as a filtration medium for
sieving in a wide range of industries.
Manufactured in a wide variety of wire diameters, Woven Wire Cloth
is produced in a square or rectangular mesh.
Woven Wire Cloth is available in roll or flat panel form.
| Wire Material | Low carbon steel wire, aluminum wire, stainless steel wire |
| Mesh Per Inch | 2mesh - 18mesh |
| Wire Diamter | 0.4-1.6mm |
| Roll Height | 0.9m-1.5m |
| Hole Pattern | Square or rectangular grid |
| Process | Weaving after crimped |
| Surface Treatment | Electro galvanized, hot dip galvanized or powder coated |
Characteristic of Aluminum Woven Wire Cloth
| 1. Firm structure | 2. Good strength |
| 3. Economy cost | 4. Acid resisting |
| 5. Alkali resisting | 6. Corrosion resisting |
| 7. High temperature resisting | 8. Accurate & uniform apertures |
Weaving Type:
| Type A: Double Woven Wire Cloth | Type B: Single Intermediate Woven Wire Cloth |
| Type C: Double Intermediate Woven Wire Cloth | Type D: Lock Woven Wire Cloth |
Application Of Aluminum Woven Wire Cloth
Used as fencing
Used as filter
As BBQ wire mesh to roast for food or meat
As screen in mine, coal factory, construction, etc.
Specification Of Aluminum Woven Wire Cloth
| Mesh/ Inch | Wire Diameter mm | Weight Kg/m2 |
| 4 | 1.25 | 3.2 |
| 5 | 0.65 | 1 |
| 5 | 0.88 | 1.9 |
| 6 | 0.55 | 0.85 |
| 6 | 0.7 | 1.5 |
| 6 | 1.1 | 3.25 |
| 8 | 0.43 | 0.75 |
| 8 | 0.6 | 1.3 |
| 8 | 0.65 | 1.7 |
| 8 | 1.0 | 3.7 |
| 10 | 0.4 | 0.75 |
| 10 | 0.6 | 1.5 |
| 10 | 0.85 | 3.75 |
| 12 | 0.4 | 0.85 |
| 12 | 0.5 | 1.5 |
| 12 | 0.75 | 3.3 |
| 14 | 0.45 | 1.4 |
| 14 | 0.4 | 1.1 |
| 16 | 0.4 | 1.1 |
| 16 | 0.35 | 1 |
| 18 | 0.4 | 1.4 |
NOTE:
1. The definition of mesh is the number of openings per linear
inch.
2. The term opening represents the clear opening between two
parallel wires.
FAQ:
1. I'm interested in your Woven Wire Cloth , can i get free sample?
Yes, we could supply samples for free, but customer should pay the
express fee.
2. Could you make a special Woven Wire Cloth for me?
Yes, it can be made as your require.
3. How can i get a competitive price quickly?
The quick quotation depends on the detailed dimensions you supply.
