Roll Galvanized Cyclone Fencing With Diamond Holes As Mesh Fence
Description Of Cyclone Fencing
Material: Galvanized iron wire, aluminum alloy wire or PVC coated iron wire.

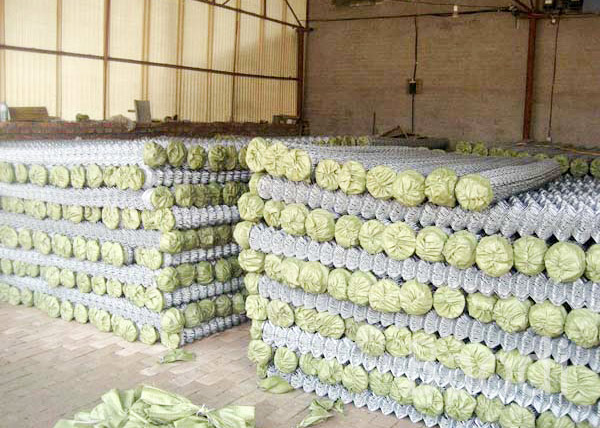

Packing: Plastic film or weaving bag or pallet
| 1. Firm structure | 2. Good flexibility | 3. Uniform mesh opening |
| 4. Acid resisting | 5. Fast installation | 6. Long service life |
| 7. Beautiful apprearance | 8. Corrosion resisting | 9. Alkali resisting |
— Cyclone Fencing is also named chain link fence or cyclone fence,
with uniform diamond mesh holes. |
— It's a kind of woven mesh made of high quality steel wire. |
— The surface treatment of Cyclone Fencing is galvanized or PVC
coated. |
Selvage Type:
— The wires run vertically and are bent into a zig-zag pattern so
that each "zig" hooks with the wire
immediately on one side and each "zag" with the wire immediately on
the other.
— This forms the characteristic diamond pattern seen in this type
of fence.
Type A: Twisted Selvage: The wire is twisted in to a barbed selvedge at both ends
Type B: Knuckled Selvage: The wire is knuckled at both ends
Type C: Twisted & Knuckled Selvage: The wire is knuckled at the bottom and twisted into a barbed
selvedge at the top
Usage Of Cyclone Fencing
| Sports Field | River Banks | Animal Fencing |
| Garden | Airport | Highway fencing |
| Stadium fencing | Machine protection | Green belt fencing |
Residential
Cyclone Fencing for residential are woven generally with metallic
wire of galvanized iron, or with plastic coated galvanized wire.
Sports
Cyclone Fencing are commonly used for sports because they are
durable and easy to install.
Specification Of Cyclone Fencing
| Mesh(mm) | Wire Gauge(SWG) | Wire Diameter(mm) | Coil Dimension | Roll Size |
| Natural Volume | Fold Volume | Roll Height | Roll Length |
| 100x100 | 9 | 3.66 | 55 | 35 | 0.9m-2.1m | 5-30m |
| 80x80 | 10 | 3.25 | 57 | 38 | 0.9m-2.1m | 5-30m |
| 60x60 | 12 | 2.64 | 52 | 34 | 0.9m-2.1m | 5-30m |
| 50x50 | 12 | 2.64 | 49 | 33 | 0.9m-2.1m | 5-30m |
| 40x40 | 10 | 3.25 | 46 | 32 | 0.9m-2.1m | 5-30m |
| 30x30 | 12 | 2.64 | 42 | 34 | 0.9m-2.1m | 5-30m |
| 20x20 | 19 | 1.02 | 25 | 34 | 0.9m-2.1m | 5-30m |
Note: There’re common specifications of products. Non-standard can
also be customized.
