0.8mm Round Hole Ceiling Perforated Stainless Steel Mesh

Round Hole Steel Plate Stainless Steel Ceiling Perforated Mesh

Product Description

Perforated Mesh refers to punching holes of different shapes on the same material to meet different requirements.

Most of the raw materials used for perforated mesh are: stainless steel, low carbon steel, aluminum, etc.

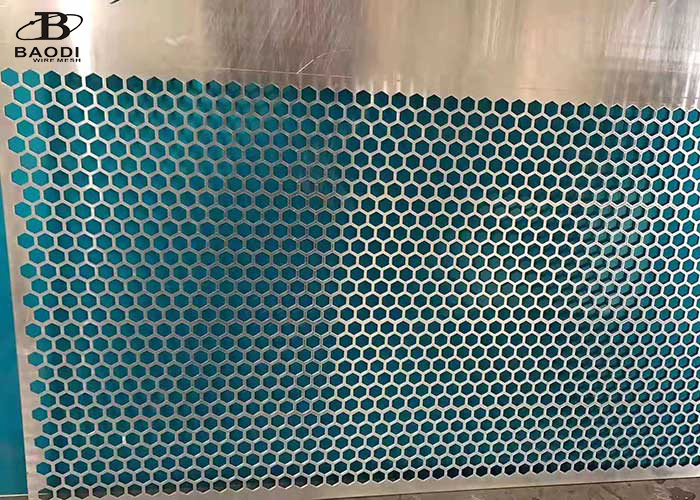

Hole Pattern: rectangular hole, square hole, diamond hole, round hole, hexagon hole, cross hole, triangle hole, oblong hole, long waist hole, plum blossom hole, fish scale hole, pattern hole, five pointed star hole, irregular hole, bulging hole, etc.

Round Hole Perforated Mesh
Raw Material: low carbon steel,stainless steel,aluminum
Hole	Round hole,square hole, slotted hole	Hole Diameter	0.8-25mm
Sheet Width	Maximum width 1.5m	Sheet Length	Maximum length 3m
Sheet Thickness	0.5mm-3.5mm	Packing	Plastic film inside,pallet outside

Specification List

Raw material	Thickness of metal(mm )	Hole Dia.(mm)	Pitch (mm)	Sheet Width(m)	Sheet Length(m)	Porosity (%)	Weight (kg/m2)
Carbon steel	0.5	1	1	1	2	19.6	3.14
	0.55	1.1	2.2	1	2	22.67	3.411
	0.55	1.5	2.8	1	2	26.03	3.268
	0.8	1.5	1.5	1	2	19.6	5
	0.8	2	3.4	1	2	30.78	4.465
	1.5	2	2	1	2	19.6	9.4
	1.5	5	8.0	1	2	35.39	7.843
	3	5	16	1	2	19.6	18.8
Stainless steel	0.5	1	1	1	2	19.6	3.14
	0.8	1.5	1.5	1	2	19.6	5
	1	2	2	1	2	19.6	6.28
	2	5	16	1	2	19.6	6.28
Aluminum	0.5	1	1	1	2	19.6	1.08
	0.8	3	3	1	2	19.6	1.72
	1.6	2	2	1	2	19.6	3.24
	3	4	16	1	2	19.6	4.23

Application:

Perforated Mesh can be used as sound-absorbing material for ceiling and wallboard of buildings.

It can be used for environmental protection noise control barrier in traffic and municipal facilities such as expressway, railway and subway passing through urban areas, sound insulation and noise reduction board for building walls, generator rooms, factory buildings and other noise sources, and sound absorption board for ceiling and wallboard of buildings.

Variety Hole Pattern Display:
